Una novità importante: AudioNautes vi offre la impressionante meccanica a cinghia per CD CEC TL-0X ad un prezzo strepitoso!



CEC is legendary for precision

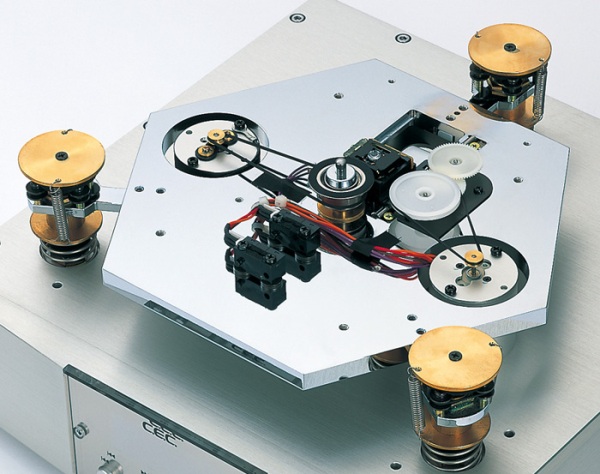

Conventional CD transports tend to amplify even the slightest vibration in the reflective surface of the disc due to the distance the light beam has to travel from the laser to the pits in the disc and back to the receiving lens. These micro-vibrations scatter light and reduce the integrity of the digital data stream. The TL0X's revolutionary three part chassis suppresses micro-vibrations and resonances that cause unwanted jitter in the digital data stream. The elimination of jitter greatly reduces the distortion that too often characterize CD as digital rather than musical. We have achieved superior isolation of the TL0X drive mechanism by suspending it from three rubber-damped suspension, which towers extend to their tiptoe feet as unified assemblies to decouple resonances from the chassis and drive mechanism. The drive mechanism is a masiive 30mm sandwich of nonmagnetic materials with dissimilar resonances a 20mm aluminum plate and a 10mm brass plate. Since the drive mechanism is only slightly wider than the compact disc it must hold, the susceptibility to airborne interference is greatly reduced.

The music lives in the details
To assure undisturbed operation of the laser pickup, all sources of electromagnetic interference are physically isolated. The massive regulated power supply is housed in a separate chassis that may be located up to 1.5meters from the TL0X drive mechanism chassis. The drive electronics are enclosed in a 20mm thick nonmagnetic anodized aluminum chassis isolated from the main drive mechanism The drive and laser motors are electronically, magnetically, and mechanically isolated from the laser pickup and turntable, coupled only by two precision drive belts. The disc drive motor is a cog-free low torque design that is inherently free of vibration. The drive belt multiplies its torque to spin the compact disc on a precision spindle/thrust bearing assembly and supports a 125mm diameter stabilizer clamp weighing 450grams (1 lb). With inertia comparable to the most massive analog turntable, the flywheel effect of the TL0X disc stabilizer achieves perfect rotational stability without the constant electronic servo corrections required in all other CD transports. As a further benefit, the disc stabilizer covers the entire top and outer edge of the CD to prevent light scattering and internal.

If music is your life
Each TL0X is rigorously tested after completion and then "burned in" for a full week at least. Only after a final exhaustive listening test is it approved and packed for shipment to its new owner. The TL0X is priced commensurate with its performance and the true cost of its premium materials and painstaking workmanship. Each unit is hand fabricated by an individual whose technical skill are complemented by his exquisite attention to detail. Pride, craftsmanship, and music reproduction on compact disc have reached a new plateau with the CEC TL0X.



Specification TL0X

Format	Belt-drive CD transport
Playable disk	music CD & finalized CD-R/RW
CD Stabilizer	diameter 125mm, weight 45Og inertia moment 6.6 x IO-4N,m.s2
Suspension	D.R.T.S. (Double Rubbers & Triple Springs) with Three Tiptoes legs

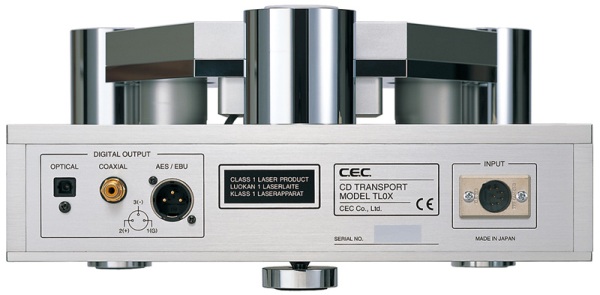

Digital output	AES / EBU (XLR, hot=pin 2) x 1(110ohm) Coaxial x 1(75ohm) TOS Iink x 1(optical)
Power supply	AC 120/230V 50/60Hz (specified on rear panel)
Power consumption	12W
Dimensions	Transport: approx. 300(W) x 317(D) x158(H)mm Power box: approx. 125(W) x 260(D) x 103(H)mm
Weight	Transport: approx. 16kg Power box: approx. 4kg
Accessories	AC cable, DC cable, CD stabilizer, Spike saucers, remote controller, batteries for remote controller, owner's manual
Color	Silver
Belt-Drive CD US patent number	5373495
Belt-Drive CD Europe patent number	0536699
